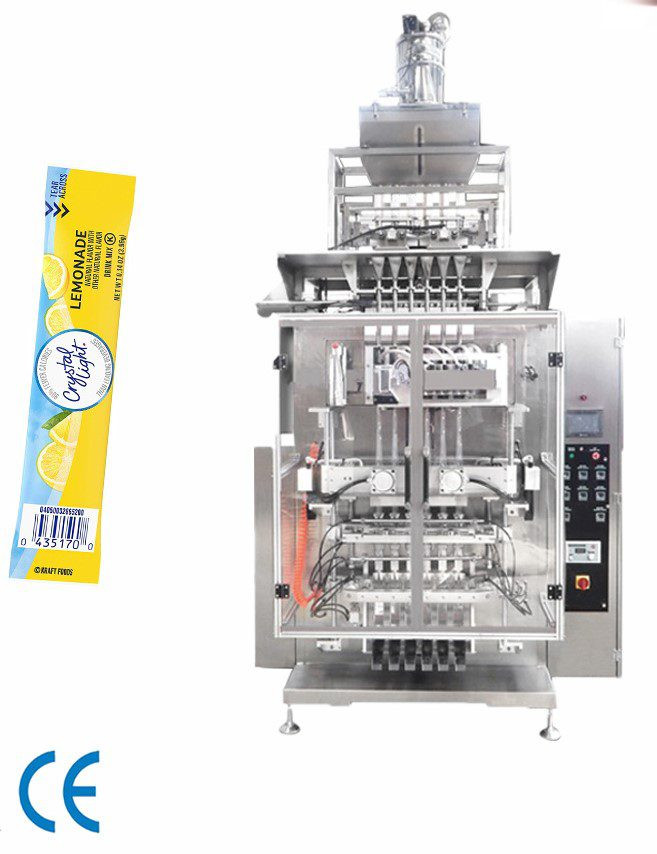

Automatic VFFS Multi-Lane Sachet Liquid Ketchup Sauce Filling Packing Machine Vertical Honey Fruit Jelly Stick Beverages Bags

Brand H-TECH

Ask about this product

0.00 /5.0 (0 Reviews)

People are viewing right now

Pricing

KSH2,944,000.0 /set

~~KSH3,200,000.0~~

-8%

100 available

Minimum order qty 1

Qty

Order Via WhatsApp

Sold by AFRICA PACKAGING SOLUTIONS

Message Seller

Brand H-TECH

Products from this brand

Free Shipping

1.Multi lanes machine can produce multi lanes bags at same time;

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity;

3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc;

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment;

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position;

6. PLC controller, high function and control the whole machine’s work steps.

Model Number	480FB
Capactity(bag/min)	Filling 30cycles/min
Range of measurement(ml)	8-15g (other size can be customized)
Bag size(mm)	(L)40-100 (W)25 （other size can be customized）
Power(W)	6800W
Source voltage	380V/50Hz 220V/50-60Hz
Packing material	Paper/PE,PET/AL foil/PE,PET/PE,NYLON/PE,Tea-leaf filtering paper etc.
Packing weight(kg)	680kg
Overall dimensions	650x1280x2750mm(LxWxH)
