Description

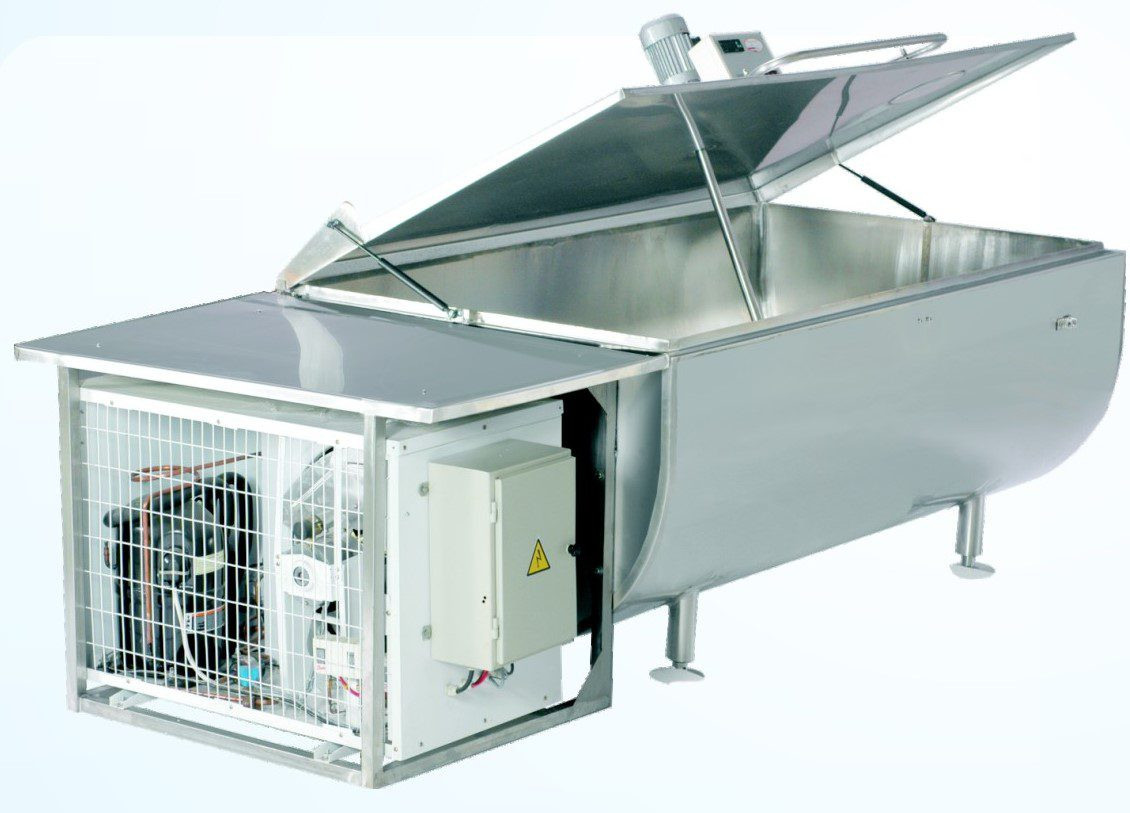

Milk Cooling Tank 500 Litres model CDX0.5KOTSC1P Direct Expansion Cooling Tank (Open Tank Semi Cylindrical Rectangular Shape) Capacity 500 Litres Has Large Opening Lids For Easy Access and Rounded Internal Corners to facilitate thorough Cleaning Tank Insulation Is Provided By Factory Injected Polyurethane Foam Of 50mm All Control System Integral Condensing Units Hermetic Type With R22 Refrigerant.

A	Bulk Milk Cooling Tank			500 Ltr.
1(a)	Rated Capacity in Litres.			500
1 (b)	Gross Capacity in Litres.			550
2 (a)	Make			KPL
2 (b)	Model			CDX -500LOTSP
3	Material used for construction			AISI 304
4	Shape and Orientation			Open Type Horizontal/Rectangular
5	Overall Dimensions and Weight			2388X980X1100/200Kg (Approx)
6 (a)	Thickness of inner shells			2.0 MM
6 (b)	Thickness of outer shells			1.6 MM
7 (a)	Number of Agitator			One
7 (b)	RPM of agitator (s) (Approx.)			23-25 RPM
8	CIP facility			Manual with Long Handle Brush
9 (a)	Type of insulation			By injection in situ of High Density 40kg/cu.m, CFC free PUF without any imperfection and hygroscopicity,
9 (b)	Thickness of insulation			50 mm in walls & 90mm above evaporator
9 ©	Efficiency of insulation			(0.019 Watt/MK) 50°C ambient the rate of rise of mean temp. of Milk Initially at 4°C shall not Exceed 1°C in 4 hour when rated volume is allowed to stand – still as per requirement of ISO 5708 2A(II)
10	Facility to Measure Milk Volume			SS Calibrated Dipstick with value chart
11	SS Milk Transfer Pump			1HP-5000 LPH (10 MWC)(1 Phase)

B		Refrigeration Unit
1		Type	Direct Expansion Open Type
2 (a)		Type of Compressor	Hermetically Sealed Reciprocating
2 (b)		Make of Compressor	EMERSON COPELAND/ DANFOSS/EQUIVALENT
2 ©		Model of Compressor	CR 22 / MT22
2 (d)		Size (Nominal HP) of compressor	1 Ton
3		Condenser	Air Cooled, Finned Tube Type
3 (a)		Make of Condenser
3 (b)		Model of Condenser	CS22
3 (d)		Size of Condenser	21″ X 24″- 3 Row
4 (a)		No. of Compressor	One
4 (b)		Min Cooling Capacity of Compressor (kcal/hr) at 0°C evaporating & 55°C Condensing Temperature	3150 at 7.2°C
5		No. of Fans	One
6		Overall Dimensions and Weight of the Refrigeration Unit	32″X24″X17.5″-60 KG
7		Receiver Size & Capacity	6L
8 (a)		Thermostatic Expansion Valve	DANFOSS TEX-2T WITH EQUALISER
8 b)		Thermostatic Expansion Valve Make	DANFOSS / ALCO
8 c)		Thermostatic Expansion Valve Size	DANFOSS TEX-2 WITH EQUALISER
8 d)		Thermostatic Expansion Valve Capacity	ORIFACE-5
9		Type of Refrigerant	Freon-R 22 / Eco friendly
10		Power Supply	Single Phase
C		Design Parameters
1		Ambient temperature considered for design	43 Deg C
2		Maximum Cooling Time considered for all and second milking	For All Milking 3.0 Hours & for Second Milking 1.5 Hours
3		Temperature range considered for ALL & SECOND Milking	All Milking – 35° C – 4° C Second Milking 10°C to 4°C
D		Electricals
		Power Supply	Single Phase
1		Connected Load	Watts/Amps
2		Compressor	1 Ton / 6.0 amps
3		Condenser Fan	180/0.4 Amps
4		Agitator	120 W/ 0.4 AMP
6		Maximum/Surge current drawn by the Compressor (S)	1 KW / 6.0 Amp
